Machining Lead Free Brass with PCD Tooling

Why PCD Cutting Tools Are Ideal for Lead-Free Brass

Polycrystalline Diamond (PCD) cutting tools offer distinct advantages when machining lead-free brass:

• Extreme wear resistance – minimizes edge degradation in abrasive materials
• Low friction – reduces built-up edge and improves chip evacuation
• Exceptionally sharp cutting edges – delivers excellent surface finish
• Customizable geometry – tailored to specific machines, processes, and brass grades

Together, these benefits improve both machining performance and overall cost efficiency.

Practical Applications in Plumbing Fittings

Custom-designed PCD tools have proven especially effective in the production of plumbing fittings. This industry places high demands on surface finish, dimensional accuracy, and process stability—requirements well matched to PCD tooling solutions.

Case Example

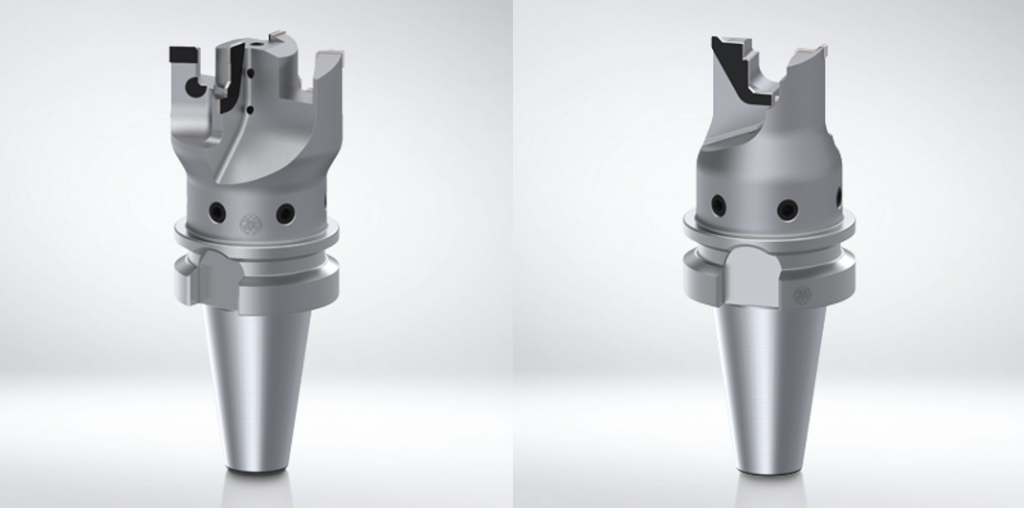

PCD Bell Form Burring Tool (Grooving Tool)

• Designed for pre-machining and finish machining of plumbing fittings
• Optimized for the specific material, machine platform, and process

These tooling solutions demonstrate:

• Significantly extended tool life, reducing downtime and tool replacement costs
• Stable, repeatable machining processes
• Outstanding surface quality, critical for components in contact with water

Recommended Machining Practices for Lead-Free Brass with PCD Tools

While exact cutting parameters depend on machine rigidity and part geometry, lead-free brass is typically machined using speeds and feeds similar to aluminum.

General Guidelines

• Cutting Speed: approximately 1,600–5,000 SFM
• Coolant: most customers use emulsion coolant, though some applications can be run dry
• Cutting Strategy: climb milling is recommended for improved surface finish and tool life

Additional Best Practices

• Match tool geometry to the specific brass alloy and machine characteristics
• Monitor tool wear and adjust feeds and speeds to maintain process stability
• Use proper lubrication or coolant flow to support chip evacuation

Benefits of Custom PCD Tool Solutions

• Extended tool life – lowers tooling costs and reduces machine downtime
• Stable, reproducible processes – improves reliability in series production
• Excellent surface quality – essential for plumbing fittings and precision brass components

JBO develops custom PCD tools and supports customers from initial concept through series production. Flexible manufacturing capabilities allow for fast delivery of individual tools using all standard machine interfaces.

Conclusion

Machining lead-free brass requires careful consideration due to its abrasive nature and lack of lead lubrication. Custom PCD cutting tools provide an effective solution, delivering long tool life, stable machining processes, and superior surface finishes.

For applications involving plumbing fittings or other precision brass components, investing in tailored PCD tooling ensures both technical performance and economic efficiency.
